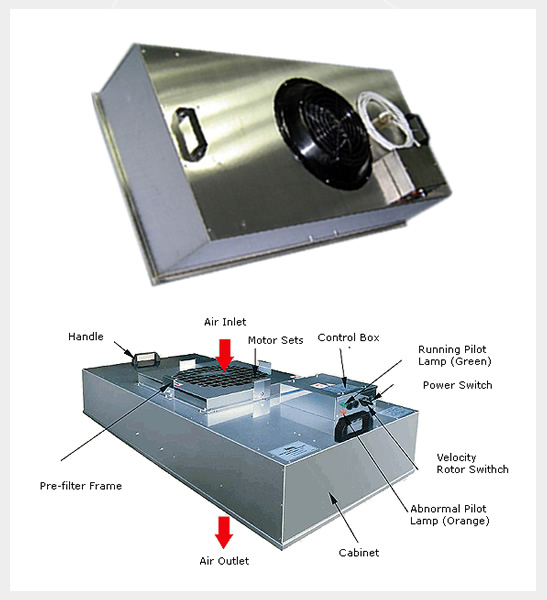

Laminar Flow Unit (Module Type)

Compound Engineering Plastics
The researches of A 3D turbo fan made by own company which High-efficient/Low-noise/Low-vibration/Average air flow/Non-oxidized and Resistant against alkali acid with fine features.

Product Features

• 3D Airfoil turbo fan High-efficient & Low-noise
  A 3D turbo fan made by aluminum which pursued the most suitable design by computer analysis.
• Flexible change design
  The specifications of unit can be designed according to customer’s requirements besides our standard models, example for the modification of main filter type, cabinet materials…etc.
• Convenient design of installation
  Pre-filter frame board above unit to make prefilter easy installation and maintenance.
• Easy carry/handle friendly design
  The transportation and installation of unit is easy with carrying handle and the outlook of units is pretty.
• Multiple safe protect devices
  The overload current protection circuit, abnormal pilot lamp,abnormal signal circuit (common fault output dry contactor:NC X 1 Set),motor temperature control switch protection circuit ...etc. for requirement.

Specifications

Item	Specification		Remarks
Module Size	600 * 1200 mm		Module size can be designed according to customers requirements besides standard module.
	900 * 1200 mm
	750 * 1500 mm
	1200 * 1200 mm
Air Flow Velocity	1Φ	0.4/0.35/0.3m/s(Hi/Me/Lo)
	3Φ	0.35m/s
Main Filter	HEPA	0.3μm Over 99.99%	HEPA:High Efficiency Particulate Air
	ULPA	0.1μm Over 99.9995%	ULPA:Ultra Penetration Air
		0.1μm Over 99.99995%
		0.1μm Over 99.999995%
	PTFE	0.1μm Over 99.9995%	PTFE:Poly Tetra Fluoro Ethylene
Main Body	Standard	Stainless Steel (SUS430)
	Option	Galvanized Sheet Iron
		AL-ZN Alloy Sheet
		Coating Sheet Iron
Power Supply	Standard	3Φ 220V 60Hz， 1Φ 220V 50Hz，1Φ 220V 60Hz
	Option	3Φ 380V 50Hz，3Φ 380V 60Hz，3Φ 208V 50Hz，3Φ 208V 60Hz
Option	Pre-filter Power plug and cable Duct flange for suction air		As each FFU has over current relay unit, the capacity of switchboard can be applied up on request.

Filter

• As demands of cleanliness with process of semiconductor or LCD manufacturer,you are able to choose the fittest filter of particle diameter, dust collection efficiency, etc.
• If you need the filter without B(Boron), We recommend PTFE (Poly Tetra Fluoro Ethylene)filter that is made of material of membrane.

• If you must avoid DOP(Di Octyl Phthalate) for testing filter, please inform us to test with silica without water or atmospheric air.

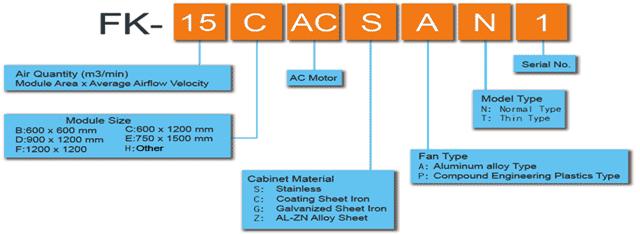

Model Type

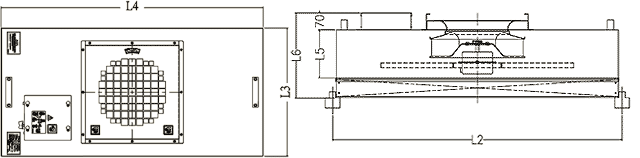

Outside Dimension

Standard Type Module Size Model L1 L2 L3 L4 L5 L6 C FK-15CACSAN1 600 1200 574 1174 195 348 E FK-24EACSPN1 750 1500 724 1474 300 383 F FK-30FACSPN1 1200 1200 1174 1174 300 383

1 Phase Motor

Model Type			FK - 15CAC SAN1		FK - 24EAC SPN1		FK - 30FAC SPN1
Module size		mm	600 * 1200		750 * 1500		1200 * 1200
Air quantity		m3/min	15		23.6		30
Average Airflow velocity		m/s	0.4 / 0.35 / 0.3
Total static pressure		pa	180 pa (Me step)
Filter	Effciency	-	over 99.99% at particle diameter over 0.3μｍ
	Frame	-	Aluminum
Fan runner	Quantity	unit	1
	Type	-	Airfoil turbo fan runner (Compound Engineering Plastics)
Power source		-	1Φ 220V , 60Hz	1Φ 220V , 50Hz	1Φ 220V , 60Hz	1Φ 220V , 50Hz	1Φ 220V , 60Hz	1Φ 220V , 50Hz
Electric power consumption		W	130	150	245	220	250	225
Weight		kg	24	24	34	34	41	41
Noise(under 1.5m of filter)		dB(A)	52	52	55	55	57	57

PS:
1.For aboved performance data is for Specification Types, without notices if any modifying.
2.The variable data is according to difference specification for aboved.

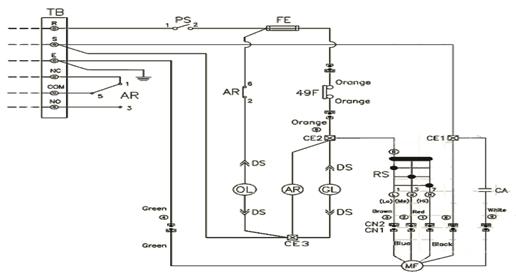

Wiring Diagrams

Mark	Name
MF	Fan Motor
FE	Fuse
AR	Auxiliary Relay
CA	Capacitor
PS	Power Switch
49F	Internal Thermostat for Fan Motor
TB	Terminal Block
RS	Velocity Rotor Switch
GL	Running Pilot Lame (Green)
OL	Abnormal Pilot Lamp (Orange)
CN, DS, CE	Connector

Example for Standard Models (Terminak Base Connection)
Power Source: AC 1Φ, 220V, 60Hz
Caution: Please distribute for broken line at building side.
