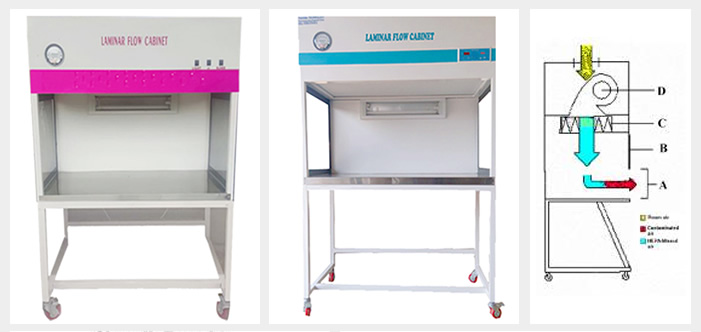

Clean Air Vertical Flow Cabinet

Fabricated using superior quality raw material, our range of Laminar flow cabinets is highly in demand in the global market. These laminar flow cabinets, laminar air flow cabinet have been conceptualized to provide a work area completely bathed in high efficiency perfect air which is free from any kind of particulate contamination or impurities.

We offer a precision engineered range of Vertical laminar flow cabinet that have manufactured using superior quality raw material.


Safe to use, these Vertical laminar flow cabinet are widely applicable in:

• Microbiological manipulations.
• Bio-assays and sterility testing.
• Bio clean protection for semi-automatic vial filling and bunging operations in parenteral production, hospitals, pathological laboratories, microelectronics, optics, food and beverage, agriculture, animal husbandry, avionics and biotechnology.
• Dry processing of electrons, electronic integration and micro feature assembly or, for automatic filling lines in parenteral production.
• Microbiological labs or other research control centers engaged in investigative work with sub-toxic materials.
• Providing protection for open vessels of chemicals, solvents or powders.

 Advantages of vertical laminar flow cabinet:

• Air-Stream is not directed at the operator causing less stress over.
• Larger pieces of equipment cause less.
• Larger working area.

Item	Description
Qty.	As required
Dimensions	610 x 915 x 1500 mm / 610 x 1220 x 1500 mm / 610 x 1800 x 1500 mm
Pre Filter	Air micron make pre filter with micro glass fibre media of  G-4
Efficiency	45%
Final  Supply Filter	Imported minipleat HEPA filter with hot melt technology of H-14 rating
Efficiency	99.999% down to 0.3m
Motor Blower Assy	Induction motor with centrifugal blower statically and dynamically balanced with suitable rating and size
Mounting	Unique spring suspension systems to take care of vibration and noise
Working Table	S.S. 304 with due reinforcement for better performance and stability
Side Panel Accessory No.	M.S Epoxy Coated
Front Sash	Sliding Glass With Counter Balance
INSTRUMENTS
Pressure Gauge	DAWYER, USA magnehelic differential pressure gauge : 01 No
Lights	Fluorescent tube with milky white diffuser
Other Electrical	3 Pin Socket, 15 AMP - 1 No. - On / Off switches with indicator
PERFORMANCE
Air Cleanliness	Class ISO - 5 ( as per ISO - 14644-1 )
Air Flow Rate	0.45 ± 0.05mps / 90 FPM
Illumination Of Light	Optimum
Noise Level	Less than 67 db on Scale 'A' When Ambient sound Level is not Greater than 55 db on Scale 'A'
Vibration Level	Minimum
