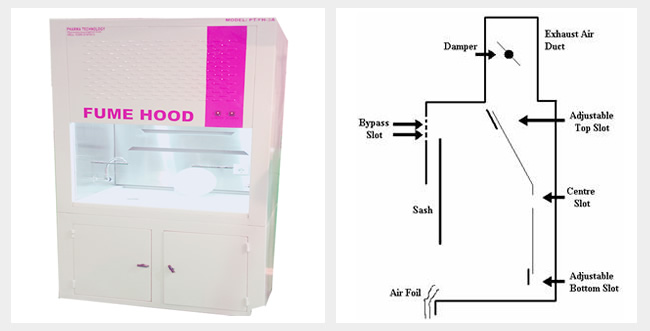

Fume Hoods

Fume Hood Bench Type Interior SS 304 and Acid resistance safety cemented glass, Water cock, Gas cock. Easy-of-Use: Sliding sash movement offers easy and thorough cleaning to every users. The high-grade transparent glass door offers excellent visibility of the chemical handling. Highly effective backup safety device for the contaminant and exhaust of toxic, offensive or flammable materials.

Item

Description

Qty.

As required

Dimensions

915 x 750 x 2250 mm / 1220 x 750 x 2250 mm / 1800 x 950 x 2250 mm

Interior:

Stainless Steel 304 grade

Exterior:

 M.S. Epoxy coated

Door:

 Horizontal Sliding type Safety cemented glass with counter balance sash

Motor
Blower Assy

Induction motor with centrifugal blower statically and dynamically balanced with suitable rating and size

Mounting

Unique spring suspension systems to take care of vibration and noise

Working Table

S.S. 304 with due reinforcement for better performance and stability

Sink with Tape

Stainless Steel sink (one) with drainage

Lights

Fluorescent tube

Other Electrical

3 Pin Socket, 15 AMP - 1 No. - On / Off switches with indicator

PERFORMANCE

Air Cleanliness

Class ISO - 5 ( as per ISO - 14644-1 )

Air Flow Rate

0.5 ± 0.6 mps / 110 FPM

Illumination
Of Light

Optimum

Noise Level

Less than 67 db on Scale 'A' When Ambient sound Level is not Greater than
55 db on Scale 'A'

Vibration Level

Minimum
