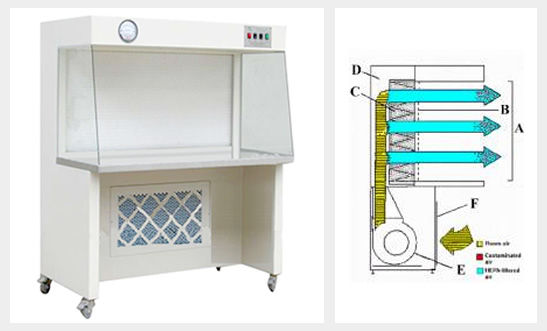

Clean Air Horizontal Flow Cabinet

We are one of the prominent manufacturers of highly efficient HORIZONTAL Laminar Air Flow Bench/ Work Station, which is appreciated for its performance. It is used in applications like industrial, medical, pharmaceutical and bio-tech research. These are manufactured from S.S. 304 with due reinforcement for better performance and stability.

Item

Description

Qty.

As required

Dimensions

610 x 915 x 1500 mm / 610 x 1220 x 1500 mm / 610 x 1800 x 1500 mm

Pre Filter

Air micron make pre filter with micro glass fibre media of  G-4

Efficiency

45%

Final
Supply Filter

Imported minipleat HEPA filter with hot melt technology of H-14 rating

Efficiency

99.999% down to 0.3m

Motor
Blower Assy

Induction motor with centrifugal blower statically and dynamically balanced with suitable rating and size

Mounting

Unique spring suspension systems to take care of vibration and noise

Working Table

S.S. 304 with due reinforcement for better performance and stability

 Side Panel
Accessory No.

Glass side panels / Clear Plastic

INSTRUMENTS

Pressure Gauge

DAWYER, USA magnehelic differential pressure gauge : 01 No

Lights

Fluorescent tube with milky white diffuser

Other Electrical

3 Pin Socket, 15 AMP - 1 No. - On / Off switches with indicator

PERFORMANCE

Air Cleanliness

Class ISO - 5 ( as per ISO - 14644-1 )

Air Flow Rate

0.45 ± 0.05mps / 90 FPM

Illumination
Of Light

Optimum

Noise Level

Less than 67 db on Scale 'A' When Ambient sound Level is not Greater than
55 db on Scale 'A'

Vibration Level

Minimum
